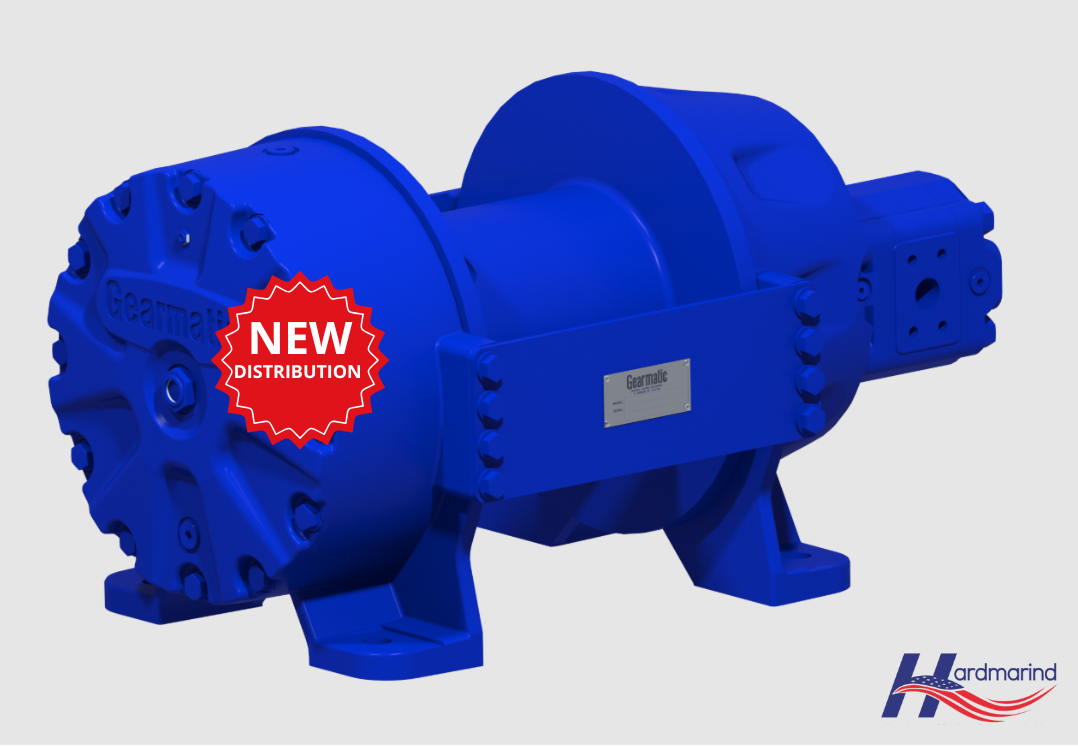

Hoists
Rated Line Pull: 12,000 lb (5,443 kg)
Description
| Gear Ratio | 41:1 |
|---|---|
| Unit Weight | 524 to 545 lb (238 to 247 kg) |
| Motor | 051 (5.1 CID) |
| Drum Sizes | 01 — 7.63″ (194 mm) Barrel x 14.63″ (372 mm) Flange x 10″ (254 mm) Between Flanges 05 — 7.63″ (194 mm) Barrel x 16.63″ (422 mm) Flange x 10″ (254 mm) Between Flanges |
| Rope Diameters | 3/8″ (10 mm), 7/16″ (11 mm), 1/2″ (13 mm), 9⁄16″ (14 mm), 5/8″ (16 mm) |
| Rope Storage | 01 — 225 ft (68.6 m) for 5/8″ (16 mm) Rope 05 — 352 ft (107.3 m) for 5/8″ (16 m |
Specifications are representative of common configuration. Consult factory for additional options.
Performance
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | |
| GM12A-41051-01 EQUAL SPEED REVERSE | |||||
| Line Pull* | 12,000 lb (5,443 kg) |
10,420 lb (4,726 kg) |
9,200 lb (4,173 kg) |
8,250 lb (3,742 kg) |
7,470 lb (3,388 kg) |
| Line Speed* | 108 fpm (32.8 mpm) |
124 fpm (37.8 mpm) |
140 fpm (42.7 mpm) |
157 fpm (47.7 mpm) |
173 fpm (52.7 mpm) |
| Drum Capacity | 34 ft (10.4 m) |
74 ft (22.6 m) |
119 ft (36.3 m) |
169 ft (51.5 m) |
225 ft (68.6 m) |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | Layer 7 | |
| GM12A-HSR-41/9051-05 HIGH SPEED REVERSE** | |||||||
| Line Pull* | 12,000 lb (5,443 kg) |
10,420 lb (4,726 kg) |
9,200 lb (4,173 kg) |
8,250 lb (3,742 kg) |
7,470 lb (3,388 kg) |
6,800 lb (3,084 kg) |
6,260 lb (2,840 kg) |
| Line Speed* | 108 fpm (32.8 mpm) |
124 fpm (37.8 mpm) |
140 fpm (42.7 mpm) |
157 fpm (47.7 mpm) |
173 fpm (52.7 mpm) |
191 fpm (58.1 mpm) |
207 fpm (63.2 mpm) |
| Drum Capacity | 34 ft (10.4 m) |
74 ft (22.6 m) |
119 ft (36.3 m) |
169 ft (51.5 m) |
225 ft (68.6 m) |
286 ft (87.2 m) |
352 ft (107.3 m) |
Based on pressure of 2,200 psi (152 bar), 50 gpm (189 lpm), 5/8” (16 mm) rope and 5.1 CID motor.
Actual performance will vary dependent on hydraulic system, motor, drum and cable sizes.
**High Speed Reverse (HSR) reel out line speed is 4.4 times faster than reel in speed. In reverse rotation (reel out), the maximum load can be fully controlled at a line speed equal to the reel in speed.
